- OPENING WIDTH: 17″ or greater
- MAX PANEL SIZE: 4’ × 10’
- USAGE: MEDIUM FREQUENCY
- OVERLAP: NONE
- CLEARANCE: APPROX. 95%
Details
RETHINKING SWINGING DOORS: A MODERN CENTER PIVOT DOOR DESIGN
Reimagine traditional swinging doors with a modern pivot-style design that offers simplicity, elegance, and versatility. Unlike side-hinged doors, Raydoor’s center-mounted swinging doors require no jambs, creating clean, unobstructed openings that maintain the architectural flow of your space. With most hardware discreetly concealed, these doors keep the focus on the design itself, allowing for a seamless and sophisticated aesthetic.
Highlights
- Simple installation: Innovative hardware enables a jambless design for clean transitions between spaces.
- Flexible design: Available as full-length doors in translucent or opaque finishes. Pair two doors for a grand entrance.
- Tradition meets innovation: A modern take on the classic swinging door, combining timeless function with contemporary design.
- Pivot door design: Center-mounted pivot hardware replaces side hinges for smooth operation, added stability, and a minimalist look.
What's included:

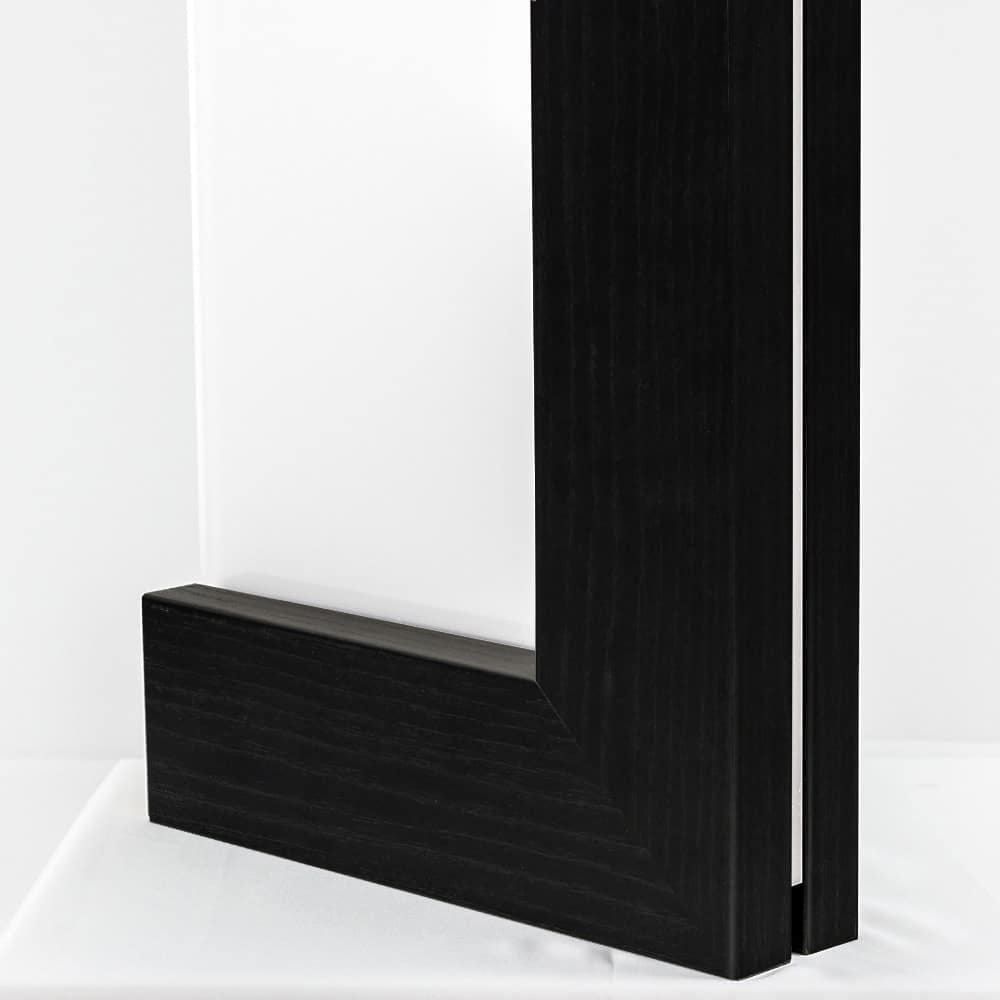

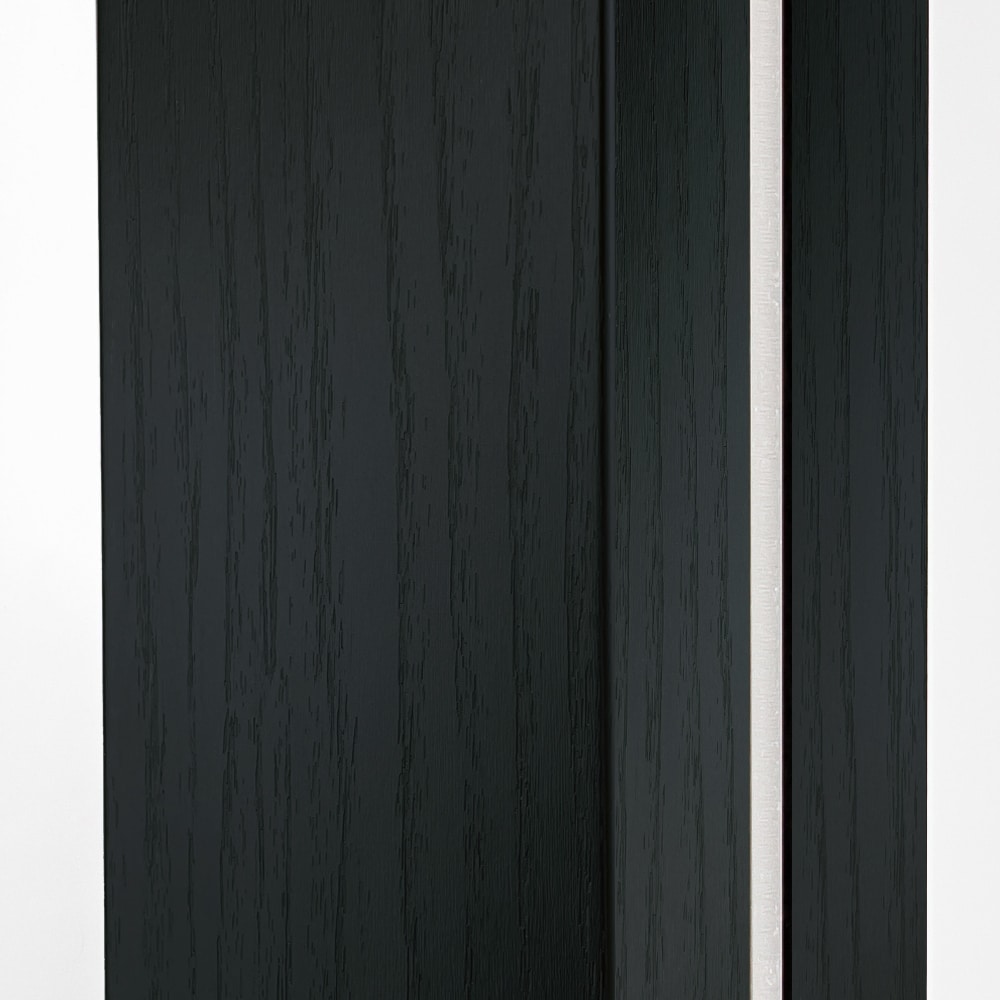

Choice of Frame
& Finish
Rectangular Pull
Brushed Metal
Roller Latch
Brushed Metal
System Types
Find CAD/Revit files, system drawings, spec sheets, and other resources for our swinging door solutions.
Swinging Door Design Options
All frame finishes and glazing inserts are compatible with any Raydoor system. If you select a specialty frame, such as thin or curved frame, there may be limitations on some finishes or glass inserts.
To confirm compatibility, please speak to our design team so we can make sure we pair you with a system that accommodates your style preferences!
OPTIONAL HARDWARE
Each system is equipped with our signature soft-close track. Optional upgrades including hardware, locks and specialty operating mechanisms are listed below. If a feature is incompatible with a system, it will be greyed out.
Handles & Pulls
ADA Pull
Brushed Metal
ADA Pull
Black
Rectangular Pull
Black
Door Locks
Floor Strike
Brushed Metal
Flush Bolt
Brushed Metal
Flush Bolt
Black
Floor Strike
Black
Straight
Bolt
SPECIALTY HARDWARE
Acoustic Solutions
Learn More
Dust-Proof
Strike
Unavailable in this system
Soft-Close
Track
Oblong
Pull
Edge
Pull
Jamb
Lock
Grey Floor
Guide
Wall Mount
Fascia
Giro Door
Connector
Flush Lock
Thumb / Key
Flush Thumb
Turn / Coin
Round
Pull
ADA Thumb
Turn
Dust-Proof
Strike
FREQUENTLY ASKED QUESTIONS
Still looking for answers? Take a look at our answers regarding our interior swinging door solutions below, or visit our FAQ page for more details.
What is a center-pivot swinging door?
A center-pivot swinging door rotates on pivot hardware mounted at the top and bottom of the door rather than on traditional side hinges. Raydoor’s pivot design eliminates the need for a conventional door jamb, creating a clean, modern opening with much of the hardware concealed.
What is the difference between a pivot door and a traditional hinged door?
A traditional hinged door rotates from hinges mounted along one side of the frame. A pivot door rotates on hardware positioned at the top and bottom of the panel, allowing for a more minimal, jamb-free appearance. Raydoor’s center-pivot design is ideal for interiors where clean lines and architectural details matter.
How far can a Raydoor swinging door open?
Raydoor pivot doors can be configured to operate at either 90 or 180 degrees, depending on the selected hardware and installation. The appropriate swing range should be determined by the surrounding walls, clearances, and intended use.
What is the maximum size of a Raydoor swinging door?
Raydoor swinging door panels can be up to 4 feet wide by 10 feet tall. Multiple panels can also be used together to create a wider entrance or divide a larger space.
Can Raydoor swinging doors be used in pairs?
Yes. Raydoor offers symmetrical two-panel swinging configurations that can create a wider, balanced entrance. Paired doors are useful for larger openings in residential, office, and hospitality interiors.
Do Raydoor swinging doors automatically return to the closed position?
Raydoor offers double-action pivot hardware that allows a door to swing in both directions and return to center after use. This can be useful in high-traffic interior transitions, depending on the selected hardware configuration.
Are Raydoor swinging doors ADA compliant?
Raydoor swinging doors can be specified with ADA-compatible hardware, including appropriate door pulls. The complete installation must meet applicable accessibility requirements, including operational force and clearance requirements. Confirm compliance for the specific configuration with Raydoor and the project team
Where can center-pivot swinging doors be used?
Center-pivot swinging doors can be used in bedrooms, bathrooms, offices, conference rooms, hospitality spaces, and other interior applications. Their concealed hardware and customizable panels make them suitable for projects where the door should complement the surrounding architecture.
CUSTOM OPTIONS FOR GLASS SWING DOORS
For over two decades, our patented TwinFrame® panel design has set the standard for innovative door systems. The premium glazing, available in acrylic or other resins, offers a lightweight yet durable solution with exceptional optical clarity and impact resistance. This design provides a versatile option for swinging doors, combining functionality with a sleek, modern aesthetic.
RAYDOOR Glass™ represents the next evolution of TwinFrame construction, blending the refined elegance of glass with cutting-edge design principles. Ideal for glass pivot doors, these systems are perfect for spaces where the unique visual appeal of glass will be complemented by practical benefits like enhanced scratch resistance and improved sound insulation.
