- Opening Width: 35″ and greater
- Max Panel Size: 5 x 10
- Usage: Medium to High Frequency
- Overlap: 3″ Panel Overlap
- Clearance: 95%
Details

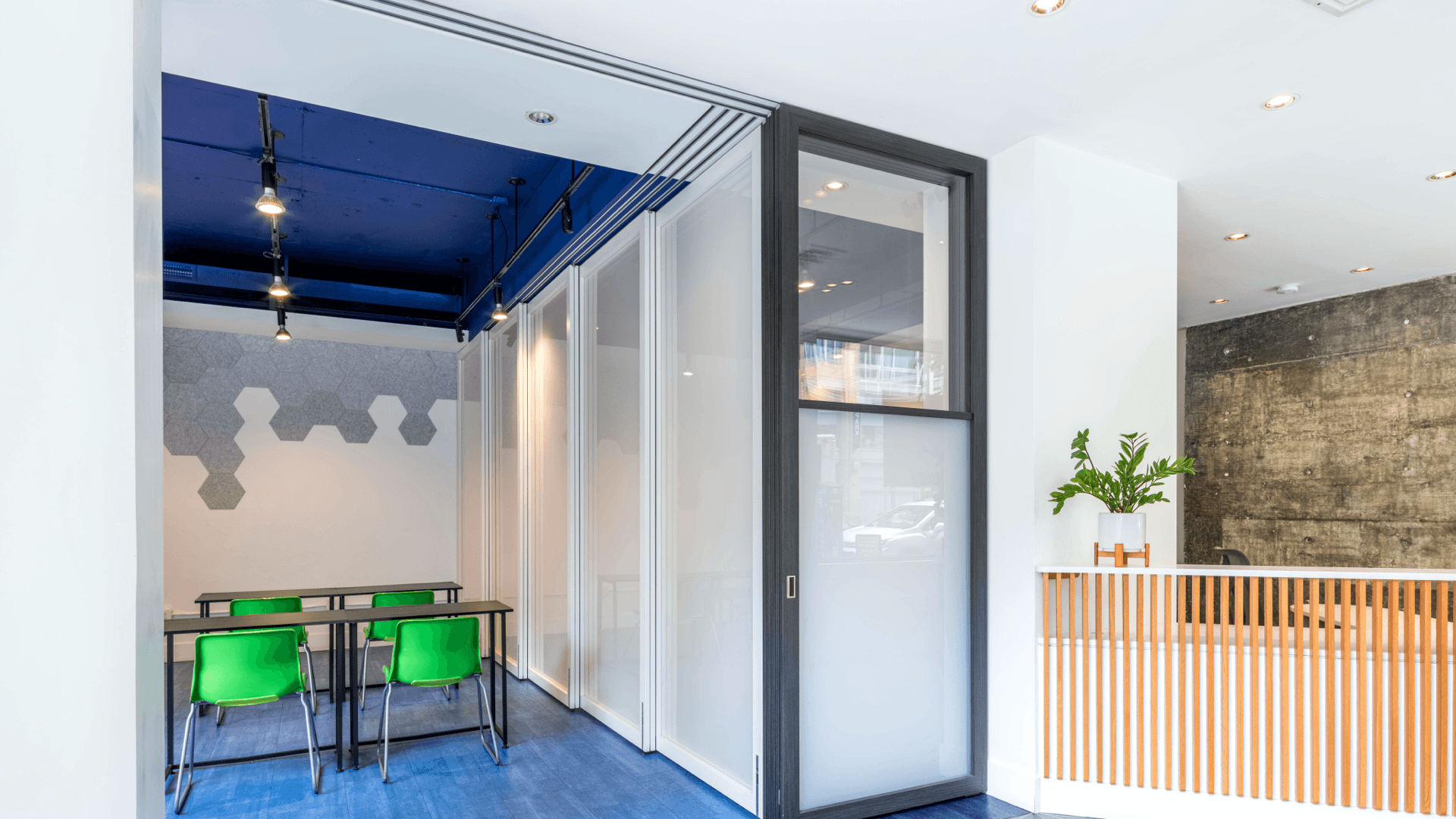

SLIDING PARTITION MAXIMUM CLEARANCE WING WALLS
A sliding wall for maximum clearance, the sliding wing wall operates “in front” of an opening so that it can hide behind an adjacent wall when retracted, leaving as large an opening as possible. Borrowing our standard sliding wall’s patented hardware, it creates a highly functional solution for large openings.
Highlights
- Leaves more opening clearance than most operable walls
- No floor track
- Provide flexibility to configure your space
- Patented guiding hardware
- Simple to operate
WING WALL STYLING
Open-concept floor plans — whether at home, in an office, or in a hotel — are a popular design choice for many people. Yet, sometimes, you want to close off an area for more privacy. Sliding wing walls make it so easy to close off or open up any space. These room dividers work seamlessly to make your space highly functional.
What's included:
Choice of Frame and Finish
Floor-Strike
Brushed Metal
Soft-Close
Track
Grey Floor
Guide
Edge Pull
Brushed Metal
Dust-Proof
Floor Strike
System Types
Find CAD/Revit files, system drawings, spec sheets, and other resources for our Sliding Wing Wall solutions.
FULL CLEARANCE
Folding doors leave a large clearance when retracted, but a sliding wing wall does even more. Rather than retracting within an opening, a sliding wing wall can be configured to leave an opening almost entirely clear for maximum accessibility. Works equally well in home offices, lobbies, conference rooms and more. Enjoy their intuitive operation and dramatic alteration of your space when extended as well as their seamless rolling on overhead tracks. A true alternative to regular folding doors for those that need more out of their space.
Sliding Wing Wall Design Options
All frame finishes and glazing inserts (apart from glass in certain systems) are compatible with any Raydoor system. If you select a specialty frame, such as thin or curved frame, there may be limitations on some finishes or inserts.
To confirm compatibility, please speak with our design team so we can be sure to pair you with a system that accommodates your style preferences.
Handles & pulls
Round Pull
Brushed Metal
Rectangular Pull
Brushed Metal
Oblong Pull
Brushed Metal
ADA Pull
Brushed Metal
Round Pull
Black
Rectangular Pull
Black
Oblong Pull
Black
ADA Pull
Black
Edge Pull
Black
Door Locks
Flush Thumb Turn/Coin
Brushed Metal
Flush Lock Thumb/Key
Brushed Metal
Floor Strike
Brushed Metal
Thumb Key
Brushed Metal
ADA Thumb Turn
Brushed Metal
Flush Thumb Turn/Coin
Black
Flush Lock
Thumb/Key
Black
Floor Strike
Black
Thumb Key
Black
Flush Bolt
Black
Specialty Hardware
Unavailable in this system
Jamb Lock
Roller Latch
Straight Bolt
Wall Mount
Frequently Asked Questions
What is a sliding wing wall?
A sliding wing wall is a multi-panel interior partition that slides in front of an adjacent wall rather than retracting within the opening. This design allows the panels to move out of the way and leaves more of the opening unobstructed when the system is open.
How much opening clearance does a Raydoor sliding wing wall provide?
Raydoor’s sliding wing wall is designed to provide approximately 95% opening clearance when retracted. Because the panels stack outside the opening, the system can leave nearly the entire passage unobstructed.
What is the difference between a sliding wall and a sliding wing wall?
A standard sliding wall retracts its panels within the opening, leaving some of the opening covered. A sliding wing wall moves its panels in front of an adjacent wall, allowing approximately 95% clearance when open. The wing wall is a strong option when maximizing the usable opening is a priority.
Does a sliding wing wall require a floor track?
No. Raydoor’s sliding wing wall uses an overhead track and patented guiding hardware to move the panels without a continuous floor track. A small floor guide helps stabilize the system, and optional floor-track hardware is available when needed.
What is the minimum opening width for a Raydoor sliding wing wall?
We require a minimum opening width of 35 inches for its sliding wing wall system. The appropriate configuration depends on the opening dimensions, panel arrangement, and project requirements.
What is the maximum panel size for a Raydoor sliding wing wall?
This depends on the project, but typically a width of 5 feet, and 10 feet tall. This also depends on materials used.
How many panels can a Raydoor sliding wing wall have?
Raydoor systems typically range between two to six panels, but can be configured to more depending on the opening width and weight of the system.
